液體噴砂機系列
◆設備基本特征 Product features
1.大程度的增強了焊接煙塵對學習環境的影響和對職工穩定的害處;
2.運轉的辦法利索,加工工藝產品參數可調,能滿足各不相同材質原料和各不相同精密機械所需要的零部件的光飾生產加工請求;
3.在崗位時中磨料磨具反復施用,總量量小;
4.關鍵零組件使用的質保期長;
5.塑料制品鋼整殼創作,設備手表防水防電結實耐用。
1. Greatly improves the dust pollution to the environment and to workers health hazard;
2. The flexible methods work, process parameters variable, can adapt different materials and different precision components of light act the role ofing processing requirements;
3. In the process of operation abrasive recycling consumption, little;
4. The main components of long service life;
5. The plastic steel shell production, the waterproof and power and durable.
◆符合標準 Applicable scope
網上家具五金類,ABS塑膠板材,有機玻璃,不飽和樹脂等鋼件或的工藝美術品的噴砂預清理、啞光清理、光飾制作、剔除污漬等。
Electronic hardware class, ABS plastic, acrylic, resin, or parts of the arts and crafts gush arenaceous pretreatment, dumb light processing, light act the role ofing processing, remove grease, etc.
◆常見系統參數指標 Main technical parameters

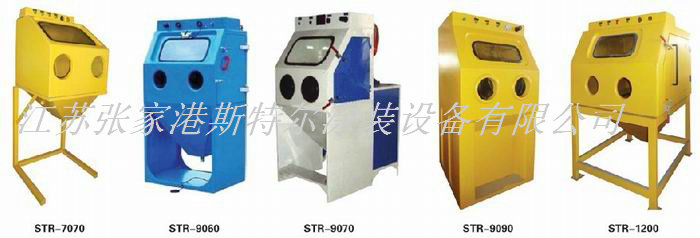

機氣應用 Model |
STR-7070 |
STR-9060 |
STR-9070 |
STR-9090 |
STR-1200 |
機器尺碼 Complete machine size(mm) |
700×700×1750 |
900×650×1680 |
900×700×1850 |
900×900×1780 |
1230×1200×1850 |
本職工作的空間 Work space(mm) |
690×680×670 |
900×630×810 |
900×700×650 |
870×880×800 |
1220×1200×850 |
正門規格Main gate size(mm) |
530×330 |
550×650 |
600×670 |
630×700 |
975×660 |
噴 槍 Spray gun |
1把 |
一柄 |
六把 |
一塊 |
一柄 |
照 明 Floodlight |
一盞盞60W防爆設備燈 |
一盞燈60W防爆設備燈 |
一盞燈60W防震燈 |
幾盞60W防火燈 |
一壺60W防震燈 |
砂 泵 Sand pump |
臺,工作效率1.5KW |
買臺,電功率1.5KW |
一個,瓦數1.5KW |
買臺,耗油率1.5KW |
這臺,瓦數1.5KW |
電 源 Power |
三相變頻器220V交流活動電 |
三相變頻器220V洽談電 |
兩相電220V交流信息電 |
兩相電220V交流學習電 |
三相變頻器220V聯絡電 |
縮減空氣的源 Compressed air source |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
2-8bar(kg/m2) |
