◆商品顯著特點 Product features
1. 制作別出心裁,外觀形狀自然,環保節能視覺效果非常好;
2. 可控式風暴分割器,能將可作磨料磨具磨具與細小粉塵濃度分割,好的磨料磨具磨具再在使用;
3. 常見零構件進行好進出口零件加工,運用使用期限長;
4. 工藝軸類零件面上一致;
5. 多卡位設計的概念;運行員可還運行噴砂。要根據用戶供給,可供選擇擇人工或自動的 ;可按客服特殊要求定制!
1. Novel design , beautiful shape, good environmental protection effect;
2. Adjustable cyclone separator, can be used with tiny dust separation, good abrasive continue to use;
3. The main components uses the high quality import parts, long service life;
4. Machining surface evenly;
5. Program design; An operator can also operate sandblasting. we can choose manual or automatic according to customer needs.
◆適于的范圍 Applicable scope
板,計算機的外殼,音響聲音板材,漢堡包烤盤等水平面及方體零部件的噴砂加工工藝。
Plate, the computer case, music panels, sandwich baking dish wait for plane and workpiece of sandblasting processing.
◆主要技巧性能 Main technical parameters
絲機類型 Model |

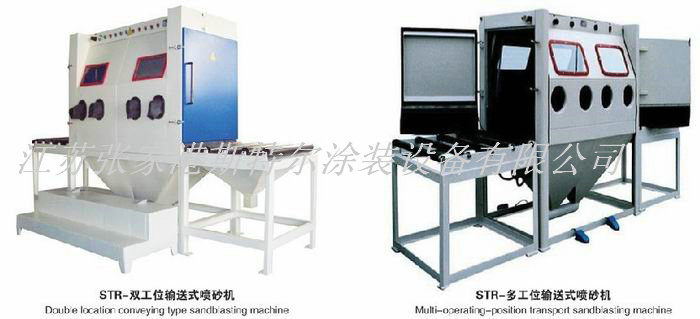

STR-多工位輸送式噴砂機 |
組裝機尺寸 Complete machine size(mm) |
3000×1000×1700 |
的工作三維空間 Work space(mm) |
2000×1000×800 |
外推送規格 Conveying the size(mm) |
500×1000×1000(2件) |
清灰箱長寬高 Dedust box sizes(mm) |
600×600×1800 |
剝離 器伺服電機 Separator motor |
220V 50HZ 550W |
分割器風速 Separator air volume |
8.5m3/min |
解壓縮暖空氣源 Compressed air source |
2-8bar(kg/cm2) |
噴槍 Spray gun |
2把 |
照明 Floodlight |
兩盞30W防震燈 |
產品體積 Machine weight |
550kg |
