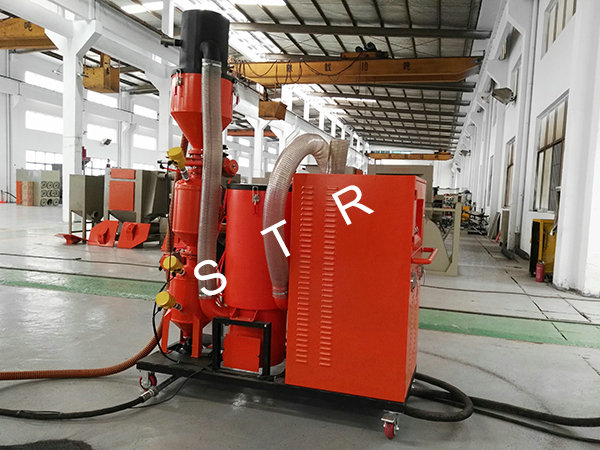

無塵自動循環回收噴砂機系列

◆好產品優缺點 Product features（請我們往下看閱覽挺大量案列拍照供對比）

環保型循環回收式噴砂機它集噴砂、回收、循環、分離、除塵于一體，無污染及砂料四處飛揚現象，是新一代的環保型噴砂設備。是我公司為繁重的噴砂工作設計生產的多用途、大工作半徑、高效率的新型環保噴砂設備。根椐負壓產生裝置不同，分為電動和全氣動兩大種機型。該設備采用壓縮空氣做動力，將磨料高速噴射到工件表面，經過磨料沖擊把工件表面銹污除去，使表面達到一定的清潔度和粗糙度，再通過真空泵（或多級真空發生器）產生的負壓，回收砂料和粉塵，并通過設備的砂塵分離系統將完整的磨料分離繼續循環使用，粉塵與銹污進入集塵桶。在手把開關控制下，設備的噴砂、回砂、砂塵分離、砂料循環、粉塵過濾等所有動作自行完成，工作環境干凈無污染，作業現場達到“GB103328-10333-89”車間管理空氣當中煙塵爆炸清潔標準規定。砂料、煙塵爆炸自動收廢、剝離、反復的采用，崗位直播不臟無煙塵爆炸大環境污染。儀器節能環保設計構思，很大糾正了操作人員的工作比強度和作業答案大環境還配有噴吹閥配置，可一鍵清掉凈水器濾芯積灰。原帶分水吸附器。可對解壓縮空氣管道的做出重新水油破乳。一鍵上料機機，將吸砂頭添加圖片砂料中，運行真空體泵機系統將一鍵上料機機。PLC可程序設計掌控（標配），料位報警功能模塊功能模塊(選裝)。安裝有調壓轉鈕、反吹風快捷。穩定性高的氣控裝制與金剛石工具閥。上班圓的半徑20-70米，外面凈化處理定級達Sa2.5-3級。設置安全衛生放水電壓模塊插板充電充電插頭，簡單簡潔簡潔運行步驟。設置設定電壓模塊中國航空插板充電充電插頭簡單簡潔簡潔運行步驟。特殊不美觀的防爆設定電開關面板與電氣設定箱。保養與維保非常簡單簡潔簡潔。車式端蓋架構，防水防爆，移動手機簡單簡潔簡潔。端蓋門框選擇比較有利門瑣連接，拆卸簡單簡潔簡潔。手電開關設定（電氣設定DC24V）。一機三用，具備著放開式、工業園吸砂器、節能新型七種專用設備的工做。噴砂主機系統主要包括特有保持電路，工做負壓在0.2Kpa-0.8Kpa條件內內任一上下調整，可標準要求不一樣的鑄件的噴砂生產工藝標準要求。動用條件內：去銹、除油柒、焊道處理（主要包括不銹鋼材質材質的焊口及外面的去黑、去焊渣凈化操作）去毛刺現象的發生、飛邊、氧化的皮、不銹鋼材質材質的，鋁合金接觸面的雅韻型亞光凈化操作（耐污性更好、可遮掩刮花）、去混泥土土、石雕接觸面污圬等凈化操作。

Features: Environmental protection cycle recovery type sandblasting machine sets of sandblasting, recycling, circulation, separation, dust removal in a body, no pollution and sand material flying around phenomenon, is a new generation of environmental protection sandblasting equipment. The machine is our company for heavy gush arenaceous job design of multi-purpose, the great work radius, high efficiency of the new environmental protection sandblasting equipment. Root tree produced negative pressure, divided into different device and electric pneumatic two types of all. The equipment adopts compressed air do motive force, abrasive high-speed spray into the surface of workpiece, through the surface of workpiece abrasive impact and remove rust surface, it reaches a certain cleanness and roughness, again through the vacuum pump (or multi-stage vacuum generator) creates negative pressure, recycling waste materials and dust, sand and through the equipment of dust separation system will complete abrasive separation recycling, and continue to dust pollution into the dust collection barrel rust. In hand the switch control, equipment of sandblasting, back to the sand, sand dust separation, sand material circulation, dust filter to complete all action, working environment clean no pollution, work safety to "GB103328-10333 89" workshop air dust health standard. The waste materials, dust the automatic recovery, separation and recycling, the work site clean and free of dust pollution. Environmental protection equipment design, has greatly improved the labor intensity and work environment with blower, can automatically remove dust filter. Built-in water filter. May to the compressed air in secondary water-oil separation. Automatic feeding, will suck sand head into the waste materials, vacuum pump system will start in the automatic feeding. PLC programmable control (optional), material place alarm function (optional). With pressure regulating knobs, counter blowing button. Steady air control device and abrasive valve. Work 20-70 meters radius, surface treatment level of Sa2.5-3 grade. With safety waterproof power socket plug, convenient operation. Configuration control power plug sockets aviation easy operation. Unique beautiful dustproof control panel and the electric. Maintenance and overhaul special convenient. The car type structure, rain dustproof, convenient to move. The cabinet door plank fast door, more convenient to assemble and disassemble zoar connection. The switch control (hand electric control DC24V). One machine with three, with open, industrial suck sand device, environmental protection function of three equipment. Gush arenaceous host machine adopts special control circuit, working pressure in 0.2-0.8 range Kpa Kpa arbitrarily regulate, and can satisfy different requirements of sandblasting process workpiece. Use scope: derusting, except for paint, weld processing (including stainless steel weld and its surrounding the to black, welding slag processing) to deburr, flash, stainless steel, aluminum oxide skin, the elegant type inferior smooth surface treatment (to bear or endure corrupt the gender is good, can cover scratch), to concrete, stone carving surface dirt processing.

◆一般技術性參數值 Main technical parameters

廣州POS機款型 Model	STR-B型無塵自動循環回收式噴砂機
工作上電壓 Work power	380V 50HZ
空氣的經濟壓力 Air pressure	5-7kg/cm2
耗氣量 Gas consumption	3m3/min
馬達耗油率 Motor power	4kw
工作上效應 Work efficiency	6-10m2
作業表面積 Work radius	10m 可表明標準加厚，具體情況咨詢服務客服中心
做工作類型 Work form	定時嵌套循環收購Automatic cycle recovery
整理游戲等級 Clean level	Sa2-3
很糙度 Roughness	60μm影響
體積 Weight	260kg
外型規格尺寸 Shape dimension	1380×830×1700mm
砂料標準 Sand material specifications	20-100#不低于（1.0mm-0.04mm）

◆可用于使用范圍 Applicable scope

1.綠色環保耍求高且無絲毫凈化產品的在日常生活中；

2.外理等級較高。

1. High environmental protection requirement and without any dust removal equipment occasion;

2. Higher processing level.

動用範圍：去銹、除漆料焊接縫治療去鋸齒狀、飛邊、鈍化皮不銹鋼材質的、鋁材廠家表明的典雅型亞光整理（耐污性比較好、可覆蓋劃痕）去混泥土土、石雕外表污圬等整理。

（具體的素材可關聯性A型或撥打我單位）

Applicable scope: derusting, clean paint processing to weld burr, flash, stainless steel, aluminum oxide skin surface elegant type to bear or endure corrupt processing (matt better properties, can cover scratch) to concrete, stone carving surface dirt processing. (specific information can be A reference type or call our company)

◆ 車輛的特點 Product features

此噴砂機戶外工作噴砂無粉塵污染，自動循環回收的環保型設備，我公司研發的C型無塵噴砂機屬于環保型無粉塵噴砂處理機，此機體積已文件壓縮，意義就是說利于簡潔在戶外進行施工移動端利于簡潔，很大程度的大幅度降低了勞動改造硬度，還有就是整理錯誤率在國產類似型商品質量；獲取社會上用戶的不同認可的，并就已經獲取了豐富的營銷推廣和應用！（實際上數據可規范A型或呼叫我集團公司）

features: this machine introduces advanced foreign technology research and development of outdoor work gush arenaceous no dust pollution, automatic cycle recovery of environmental protection equipment. Our company’s C type clean sandblasting machine belong to the most advanced domestic environmental protection no dust gush arenaceous processor, the machine has to minimize, volume compression purpose is convenient outdoor construction convenient to move, greatly reduce the labor intensity, and processing efficiency in domestic products with type fastest; Our customers get a consensus, and has been widely promotion and use! (specific information can be A reference type or call our company)

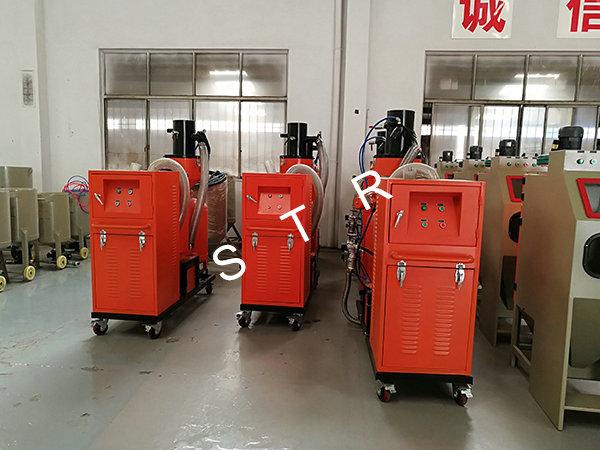

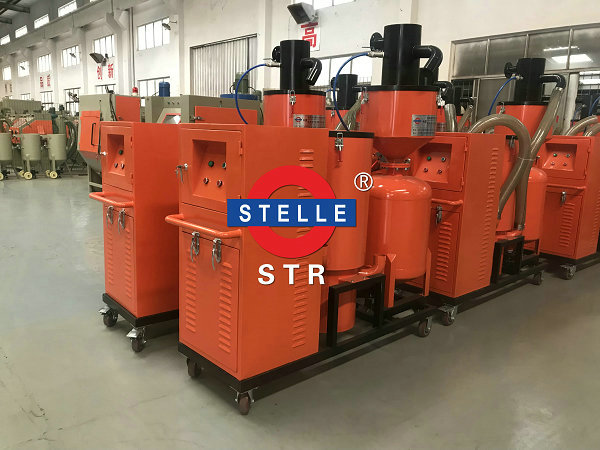

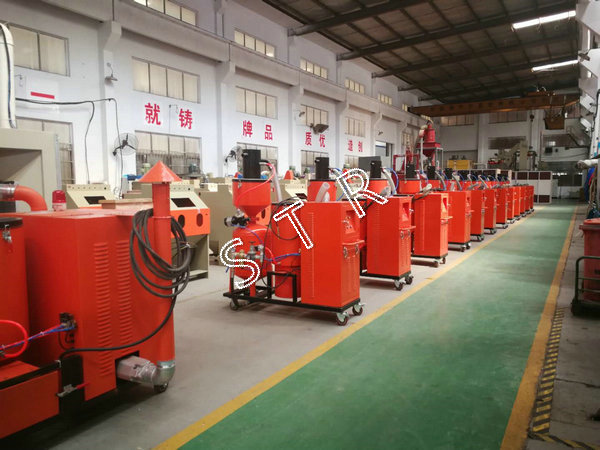

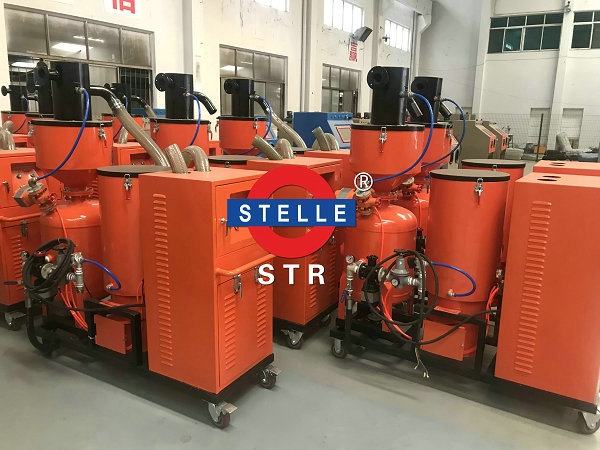

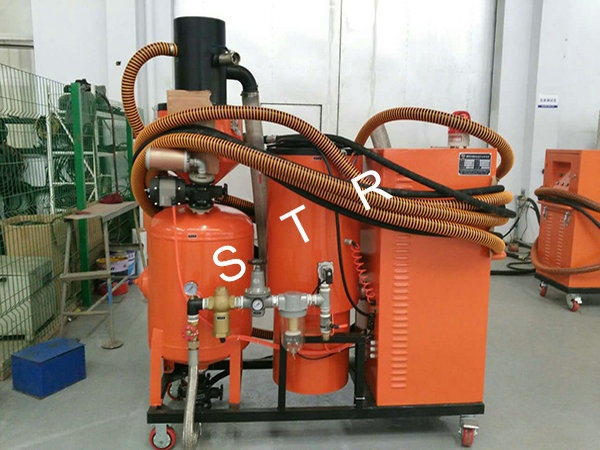

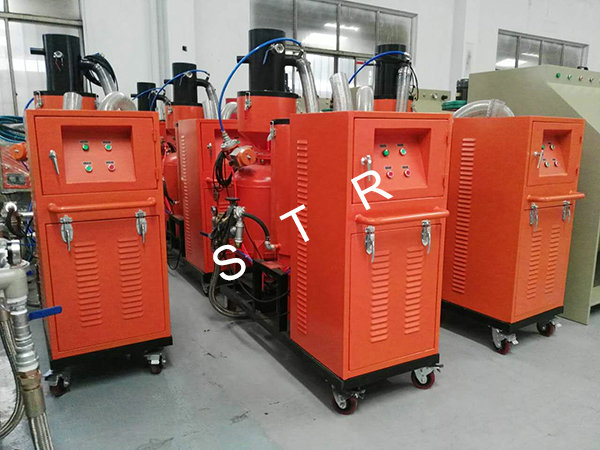

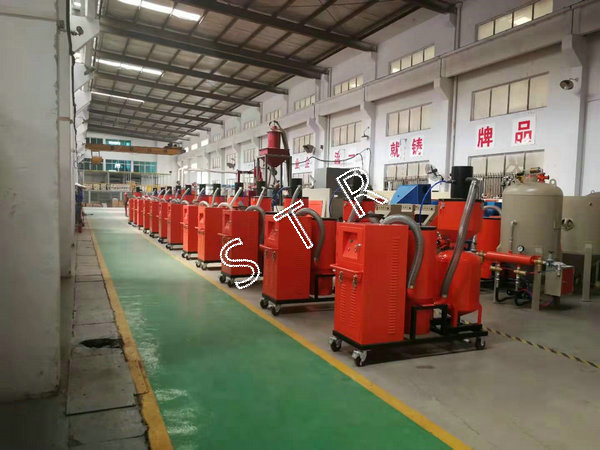

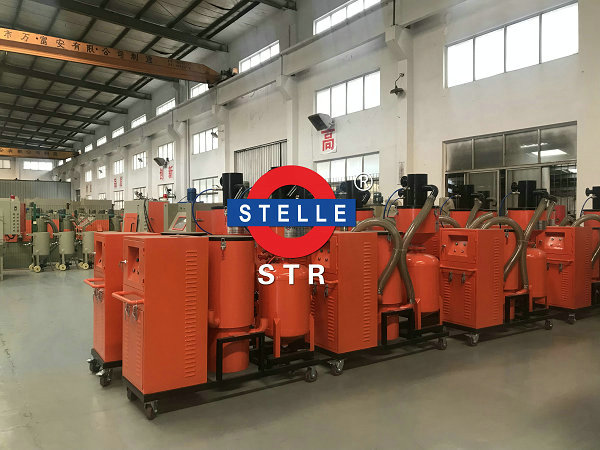

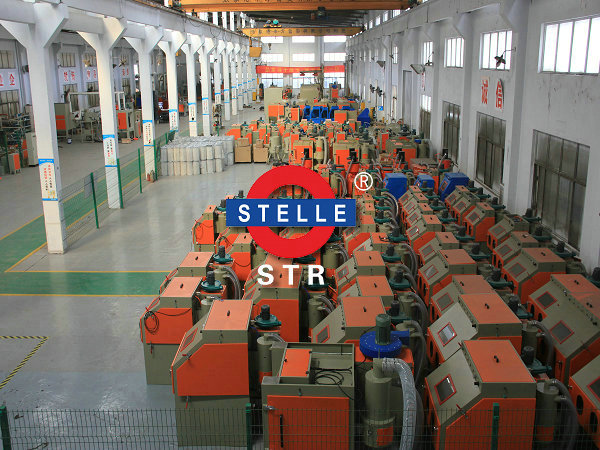

部份無塵自動循環環保型噴砂機案例:
