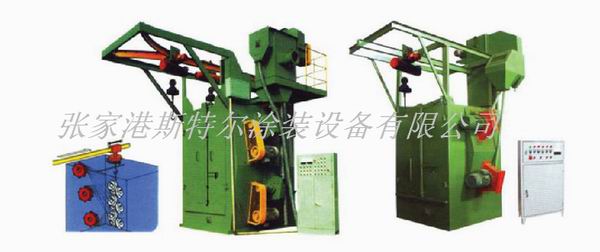

Q37系列作品吊鉤式拋丸清掉機

◆類產品這說明 Product description

Q37(Q75)型號吊鉤式拋(噴)丸清除機是廠家成功研制的一類輕型機械設備。是在我國國內在因素、外在環境多方面走訪調研的根基上，通過業主的實際情況供需而設計的。

吊鉤式拋丸清理機存在左右優點有哪些：

1. 運用大拋丸量、高拋射速度快的懸臂式抽濾拋丸器，能為顯著地提高自己進行清潔率、兌換感到滿意的進行清潔水平。

2. 仿真拋射圖及通過式拋丸機的徹底圖樣均齊全用于求算機鋪助設計構思(CAD)制圖，拋丸器的使用的及安裝較為合理的。

3. 用到頗受認可的無地坑型式模式，即最省了地坑基礎上的進行相應費用及時的間，又完成了玩家因地坑蓄水而構成的發展機內的丸砂脫漆起塊大問題。

吊鉤體現了調節的功能、運營和室外360度旋轉的的功能。

4. 請理內用高鉻板防火，用平均壽命大大大大提供，外型外觀、非常容易調換。

自然：需拋丸整理的零件直接性臥式在吊鉤或掛架子上，人工整理帶至拋丸室前部的牽引帶控制系統，吊鉤自然進去拋丸室。吊鉤進去拋丸室后，拋丸室門將油路分配器開起，電子商務火災報警系統，以防止零件在拋丸空間內使用拋丸整理時某人誤開拋丸室門。吊鉤進去拋丸室在設置好的區段部位作往回反復健身和自轉，使零件由于加以拋射，以減少拋射方位。二個吊鉤、某個吊鉤在拋丸空間內拋射，另某個吊鉤可裝運零件。拋丸整理的時段可相同校準。拋丸器進行使用后拋丸室門拆開，以帶進和帶出零件。拋丸整理中出現的粉塵濃度由三級除塵系統器篩選排放口。

Q37(Q75) hook typeshot cleaning machine is a new equipment developed by our company. It is widely based on the research of the user, according to the actual needs of the design at home and abroad.

Advantages:

1. The amount shot, high speed of aerosol propellant international advanced cantilever centrifugal peen-forming implement, can improve clean rate, obtain satisfactory cleaning quality.

2. Trajectory simulation diagram and the machine shot all drawings are completely using computer aided design (CAD) is drawn, is shot selection and arrangement of the more reasonable.

3. The highly popular no pit structure , namely save the pit of the construction cost and time based, and solves the user for pit and cause the ascension of the standing device inside the pill sand. Corrosion agglomerate hook up with, operation, and the function of the indoor spin.

4. Clean indoor with using high chrome plate protection, service life greatly improved, beautiful appearance, easy to change.

Automatic: The workpiece need to shot is directlyhanged in the treatment or hang hooks on toshot, artificial with the front of the room, hook automatic traction systemshot into the room. Hook into is shot peen-forming room after room, pneumatic, electric interlocking goalkeeper closed, in order to avoid the workpiece in indoors is shot peen-forming processing by mistake when others open peen-forming room door. Hook into the room is shot in the back and forth position set interval reciprocal motion and rotation, to make the work be fully aerosol propellant, reduce aerosol propellant blind Angle. Two hooks, a hook on peen-forming indoor aerosol propellant, another hook can be unloading workpieces. Peen-forming processing time can be arbitrary adjustment. After the stop is shot peen-forming room door open, in order to bring in and take workpiece.Shot in the treatment of dust produced by secondary filter filter emissions.

◆選用位置 Applicable scope

鋁硬質硬質合金壓鑄件、鋅硬質硬質合金壓鑄件、銅鑄件、不銹鋼管高精度鑄件、塑料件、摩車牙盤及鋼質品件的面清洗、光飾、升級。

Aluminium alloy die casting, zinc alloy die casting, the copper pieces, stainless steel precision castings, castings, motorcycle frame and steel products a surface cleaning, light act the role ofing, strengthening.

Q37一系列吊鉤式拋丸清潔機

◆類產品特色 Product features

1、根據談起德國一百三十幾年 末的通過式拋丸機實現國內自主研發化制做。

2、拋丸器用于直聯三相減速機驅動器下載，三相減速機為變頻器三相減速機，可變氣門正時頻器可控硅調壓。

3、鋼丸水流量抑制閥可進樣器設定，手動揭開與封。

4、采取芯筒脈寬噴吹閥式降塵機系統。

5、電氣成套選用PLC的控制PLC設定儀選購東南亞PLC，電器電線電纜組件選購PLC或歐姆龍軟件。

6、無地坑設計的。

1. Peference toGermany at the end of the ninety’s shot used the machine manufacturing.

2. Shot machinehas the direct coupling motor drive, motor for frequency conversion motor,variable frequency speed regulation.

3. Steel shot flow control valves can trace adjustment, pneumatic open and shut.

4. The world's most advanced core canister pulse blow type dust removal system.

5. Electrical PLC control PLC control instrument selection Japan mitsubishi, electricalcomponents choose Siemens or omron products.

6. Design without pit.

◆服務詳細說明 Product description

1、在標淮機種中，通過式拋丸機可配速騰自動檔式瓦特連桿系統軟件。

2、我們對重形工件表面，通過式拋丸機自選電氣安裝動手捻葫蘆。

3、拋丸室的門有氣動彈簧或人工機械開啟。

1. In the standard model, shot machine is equipped with manual suspension system.

2. For heavy workpiece, shot machine can be equipped with electric hoist.

3. The door of the room has a pneumatic or manual opening and closing.

半自動：本型除去機符合于鋁鑄造、建筑工程、化工品、發電機、數控等服務業的中、不同規格的中小型鑄、鍛件的漆層除去或加強治理。有點符合于多優良品種、小自定義的鑄件、鍛件、鋁硬質合金鑄件及金屬結構設計件來漆層除去及拋丸加強，以消除零部件漆層的少許粘砂、砂芯及氧化反應皮；亦符合于對熱治理件的漆層除去及加強；通常符合于最好不要結合的細長、簿壁件的除去。

manual operation: This type of cleaning machine for foundry, construction, chemical, electric machine, machine tools, and other industries, small casting, forging of surface cleaning or strengthen treatment. Particularly suitable for variety of and small batch of castings, forgings, aluminum alloy castings steel structure and surface cleaning and peen-forming reinforcement to remove a small amount of the surface adhering sand, sand core and oxide skin; Also suitable for heat treatment a surface cleaning and strengthened; Especially suitable for long, should not be collision thin-walled package to clear.

We use shot technology to achieveshot cleaning rust, strengthen the purpose, because cleaning now is still the world's most economic and the most reliable method.

◆企業產品結構特征 Product features

* 加快機械性品牌和鋁合金鋼結構材料構件的抗強度疲勞耐磨性

Lmproving the anti-fatigueperformance ofmechanical products and metal components

* 消掉壓力低效

Eliminate stress concentration

* 增長其食用耐用度

Prolong the service life

* 簡化工件表皮的表皮工序階段

Optimizate the surface of the workpiece

* 大大大延長進行清理率

Greatly improve the efficiency of cleaning up

* 減緩進行清理運行的勞動課強度

Reduce the labor intensity of cleaning up

* 避免壞境污染破壞

Reduce environmental pollution

◆不適用性之內 Applicable scope

本型護膚品常見技術應使用物理生產、市政工程物理、露天煤礦物理、壓差貯罐、小轎車、港口碼頭等這個行業，使用的提升其護膚品零控制部件的外型效果和單單從表面技術心態。

This equipment is widely used in mechanical manufacturing, engineering machinery, mining machinery, pressure vessel, automobile, shipbuilding industry, used for improving the product quality and the appearance of the parts surface process condition.

◆常見技能主要參數 Main technical parameters
