◆設備顯著特點 Product features
此機型為兩用型模具及滾筒噴砂機,產品類小工件產品可以批量生產用滾筒來生產提高了生產產量,重型工件可以使用轉臺降低工人的勞動強度,大大的滿足了客戶的需求。
The machine is available mould and roller sandblasting machine, Class products can batch production small workpiece with roller to improve manufacturing output, Heavy workpiece can use turntable to reduce the labor intensity, Fully meet the customer's requirements.
◆主要能力指標 Main technical parameters
絲機參數 Model |

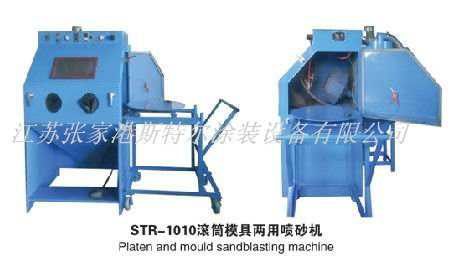

STR-1010滾筒模具兩用噴砂機 |
運轉艙面積 Internal size(mm) |
1000×1000×790 |
機床大小 Complete machine size(mm) |
1000×1540×1830 |
電源線 Power |
220V 50Hz |
器機照射燈 Machine floodlight |
220V 13W節電燈 |
分離法器發電機 Separator motor |
220V 50Hz 550W |
區分器功率 Separator air volume |
8.5m3/min |
擠壓氣氛源 Compressed air source |
2-8bar(kg/cm2) |
轉臺尺寸 Turntable diameter(mm) |
500 |
轉臺載重量 Turntable bearing |
150kg |
滾桶承受力 Roller bearing |
10-30Kg |
電腦重量 Machine net weight |
380 kg |
