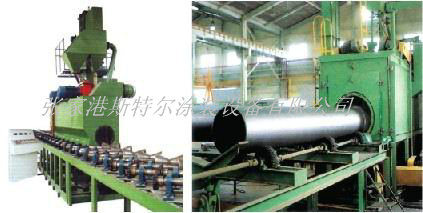

無縫管里外壁拋噴丸徹底清除機
◆食品基本特征 Product features
無縫焊管面拋丸清除垃圾機可用到大、中、大型無縫焊管、瓶的面辦理和提升、產品自主扭動、自主走動，產品的正常運轉運行速度可表明產品的條件做好當即修正，可結構設計成單管、雙管、3管、4管、進化后可清除垃圾小型管道管件、儲油罐，藍翔塑業四虎影视在线-www.四虎影视-四虎成人在线-蜜臀av性久久久久蜜臀aⅴ四虎所生產的倉儲運輸罐企業公司機動車輛等。
The outer steel wall of shot cleaning machine is used in large, medium and small steel tube, the cylinder's surface treatment and strengthening, workpiece rotating, automatic walk, the operation speed according to the requirements can be adjusted, can design the single pipe, double tube, 3, 4 pipe, tube variation can be clean up after large-scale pipe, oil tank, chemical storage tank railway vehicles and so on.
◆注意技術水平指標 Main technical parameters
|
清除垃圾圓鋼管長寬比 Clean steel pipe size |
Φ300×5000mm |
拋丸器比例 The number of shot peening machie |
2臺 |
|
輥道電腦運行的速度 Roller speed |
1-5m/min |
拋丸器輸出功率 Shot peening machie power |
11kw×2 |
|
彈丸內直徑 Projectile diameter |
Φ0.8-Φ1.2mm |
拋丸量 The number of shot peening |
250kg/min×2 |
|
第一時間彈丸裝進去量 The first projectile into amount |
800kg |
水泵葉輪直勁 Impellerdiameter |
Φ250mm |
|
進(出)料輥道總長度 Length of material into(out) the roller |
5000mm |
扇葉轉數 Impeller speed |
2930r/min |
|
輥距 Roller dimension |
400mm |
拋射快慢 Aerosol propellant speed |
60-70m/s |
|
承重單重 Load weight |
30kg/m |
提拔機工作電壓 Hoist machine power |
3kw |
|
擺線滑行機最大功率 Cycloidal reducer power |
2.2kw |
提高量 Ascension of |
30/h |
|
過濾裝置布袋條數 The number of filter bag |
36條 |
分離法量 Separation of |
30t/h |
|
濾水布袋外形尺寸 Specification of filter bag |
Φ120×5000mm |
側向轉鼓最大功率Longitudinal spiral power |
3kw |
|
處理新風量 Processing air volume |
9800m3/h |
輸送管量 Throughput |
30t/h |
|
除灰壓縮機熱效率 Dust electromotor power |
5.5kw |
總工作電壓 Total power |
37kw影響 |
|
振打調速電機公率 Vibration motor power |
0.75kw |
系統形狀長寬高 Shape dimension |
15000×4600×5000mm |
