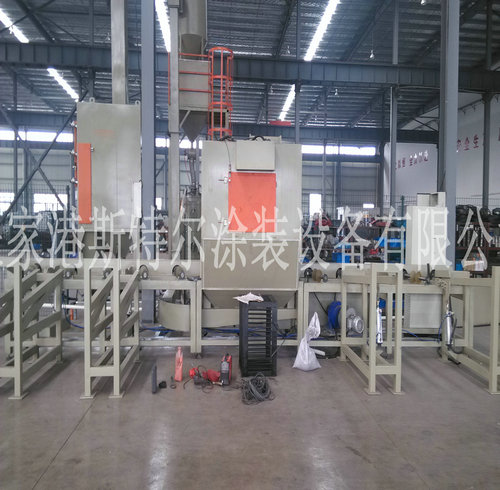

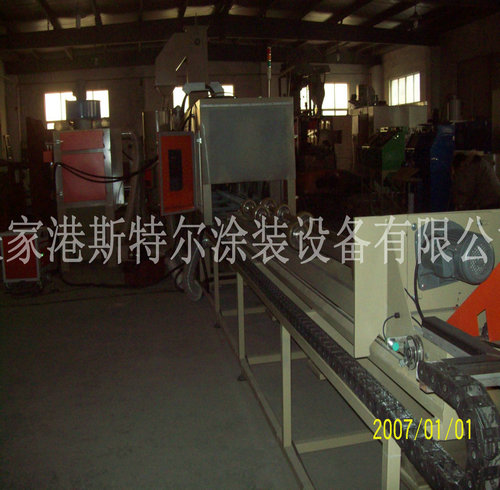

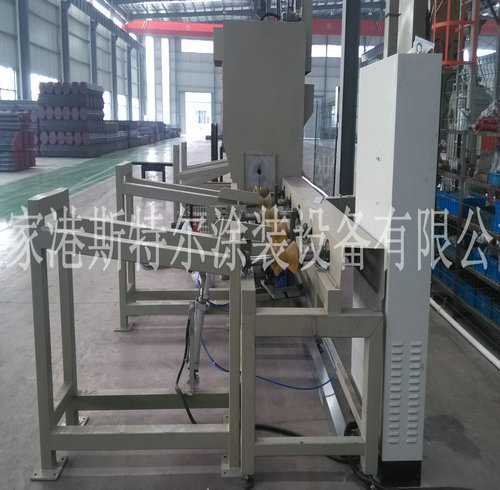

管道外壁自動噴砂機
◆用于面積 Applicable scope
管類工件表面,如:園鋼管、園鋼、連接桿、擠出機螺桿、巨型圓形、圓筒形類、圓形型部件;利用雙槍(可按標準要求多槍)及颶風式安裝除塵設備器和光電公司傳器特點,增長了產出速率及在很大程度上的減掉了維修費率。 (此智能機型需訂位)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆具體高性能參數指標 Main technical parameters
廣州POS機規格型號 Model |

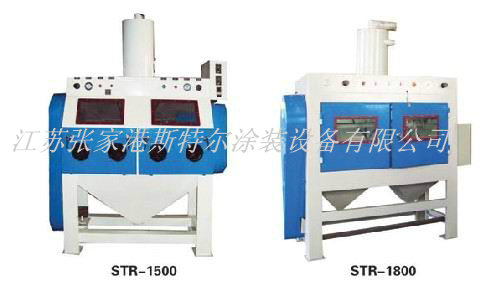

STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
做工作艙面積 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
主機長寬高 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
壓縮視頻氣氛源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
電原 Power |
220v 50Hz |
220v 50Hz |
變頻器主軸電機變頻調速器 Governor |
250W×2 |
250W×2 |
分離處理器交流電動機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
脫離器新風量 Air separator |
35m3/min |
35m3/min |
POS機體重 Machine weight |
900kg |
900kg |
